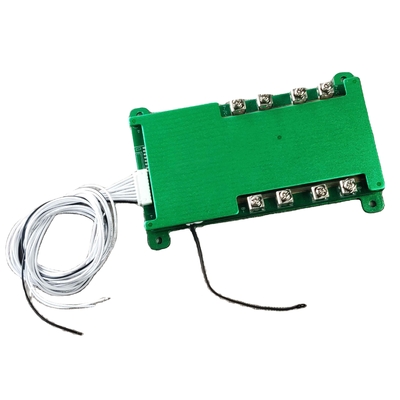

3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage

3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage
3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage 3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage 3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage 3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage 3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage 3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage

Large Image :  3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage

Product Details:
Place of Origin: China
Brand Name: Passional
Model Number: 8S24V100A
Payment & Shipping Terms:
Minimum Order Quantity: 2-99 Pieces
Price: Negotiable
Contact Now

3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage

Description
Base Material: FR-4 Copper Thickness: 0.5OZ 1OZ 2OZ 3OZ
Min. Line Spacing: 0.065mm Application: Battery Packs
Communication: No Communication Size: 170MM*108MM*19MM
Weight: About 440g Color: Green
High Light:

1OZ Lithium Battery BMS Board

,

FR4 Lithium Battery BMS Board

,

0.065mm LFP BMS

3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage

LiFePO4 Battery BMS Description
The lithium iron phosphate battery is a lithium-ion battery using lithium iron phosphate (LiFePO4) as the positive electrode material and carbon as the negative electrode material.
LiFePO4 batteries have the advantages of high working voltage, high energy density, long cycle life, good safety performance, low self-discharge rate and no memory effect.



Why we need the BMS board for the battery
Battery protection board, as the name implies, lithium battery protection board is mainly an integrated circuit board that protects rechargeable (usually lithium batteries).
The reason why lithium battery (rechargeable type) needs protection is
determined by its own characteristics. Because the material of the lithium battery itself determines that it cannot be
overcharged, over-discharged, over-current, short-circuited, and ultra-high temperature charging and discharging,
The three basic functions of the lithium battery protection board are
short-circuit protection, Overcharge protection and over-discharge protection.
Everyone can understand the significance of the BMS board to the lithium battery..
3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage 0

Product Description


Content
Specification
Unit
Remark
Discharge
Continuous Discharge current
100
A

Pluse Discharge Current
300±50
A

Charge
Charge cut-off voltage
29.6
V

Max charge current
100(MAX)
A

Over Charge protection
Overcharge detection voltage
3.75±0.05
V

Overcharge detection delay time
600±300
MS

Overcharge release voltage
3.6±0.05
V

Balance Portection
Balance Detection voltage
3.5
V

Balance release detection voltage
3.5
V

Balance current
30±0.05
mA

Overdischarge Portection
Overdischarge detection voltage
2.2±0.05
V

Overdischarge detection delay time
1000±200
MS

Overdischarge release voltage
2.7±0.05
V

Overcurrent Portection




Overcurrent protection current
300±50
A

Overcurrent detection delay time
800±300
MS
can set as per your request
Release condition
Cut short load


Short Protection
Detection condition
Out load short cycles


Detection delay time
500±150
uS

Release condition
Cut load


MOS Temp. protection
Over Charge protection temp.
85
℃
can set as per your request
Over Disharge protection temp.
85
℃

Battery high temperature protection
Charging protection temp.
55
℃

Discharging protection temp.
75
℃

Battery low temperature protection
Charging protection temp.
-20
℃

Discharging protection temp.
-40
℃

Interior resistance
Main loop electrify resistance
≤30
mΩ

Current consumption
Current consume in normal operation
≤100
uA


Sleep current(over discharge)
≤20
uA

Working Temp.
Temp.range
-20/+50
℃

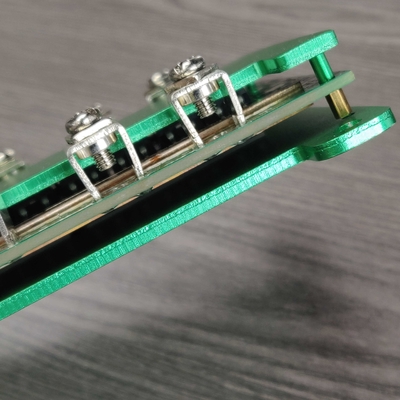

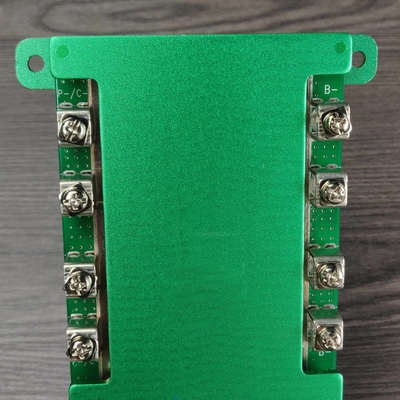

3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage 1 3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage 2



Product Usage

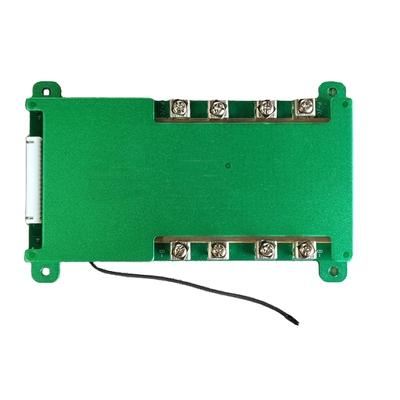

3.2V 8S 24V 100A Lithium LiFePO4 Battery BMS Board For Ebike Scooter Energy Storage 3
Our Services:

1. We offer We provide customers with one-stop procurement services.
2. Here you can find all the main accessories related to lithium batteries.
3. Save time and energy for customers.

LiFePO4 Battery BMS FAQ:
Q:1. OEM&ODM are available?

A: Sure, OEM&ODM are welcome and the Logo can be customized too.

Q:2. The relationship between Battery capacity and BMS current?
A: There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but relies on
continue current, that is to say, if your engine is powerful, you should choose a high current of BMS, it does not rely on battery capacity.

Q:3. Whether my BMS damaged?
A: if you want to judge if the BMS is damaged, please take the following steps, to test if each cell voltage is the same as with the voltmeter. if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displayed as no charge, no discharge, no discharge while the battery has voltage.
