Product Details:
|
| Keywords: | Battery Management Systems | Base Material: | FR-4 |
|---|---|---|---|
| Board Thickness: | 2mm | Usage: | Lithium Battery Packs |
| Number Of Layers: | 1-2-4-6 Layers | Size: | 125MM*63MM*16MM |
| Single Package Size : | 13X8X9 Cm | Package Type: | Bubble Pack And Carton |
| High Light: | 16S 48V 70A LiFePO4 Battery BMS,48V 70A Lithium BMS Board,E Scooter LiFePO4 Battery BMS |
||

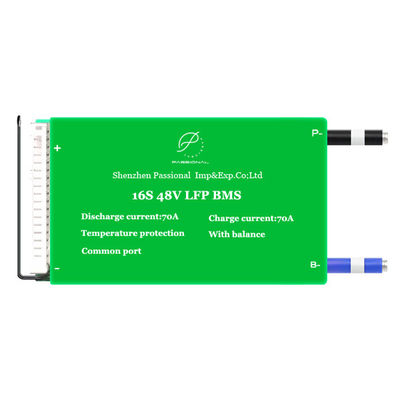

16S 48V 70A LiFePO4 Battery BMS E Scooter Lithium BMS Board
LiFePO4 Battery BMS Description:
BMS function
1. It can collect, process, and store important information during the operation of the car battery pack in real time, exchange information with external devices such as controllers, and solve key issues such as safety, usability, ease of use, and service life in the lithium battery system.
2. It can improve the utilization rate of the battery, prevent the battery from overcharging and overdischarging, and prolong the service life and safety of the battery.
LiFePO4 Battery BMS Parameter:
| Model Number | PLFP-7270 | Min. Line Spacing | 0.065mm |
| Place of Origin | Guangdong, China | Surface Finishing | HASL |
| Brand Name | Passional | Product name | Battery Management Systems |
| Base Material | FR-4 | Application | Battery Packs |
| Copper Thickness | 1/2OZ 1OZ 2OZ 3OZ | Usage | Lithium Battery Packs |
| Board Thickness | 2mm | Number of Layers | 1-2-4-6 Layers |
| Min. Hole Size | 0.1mm | Communication | no |
| Min. Line Width | 0.065mm | Size | 125MM*63MM*16MM |
| Selling Units | Single item | Weight | 0.165kg |
Our Services:
1. We offer We provide customers with one-stop procurement services
2. Here you can find all the main accessories related to lithium batteries
3. Save time and energy for customers.
LiFePO4 Battery BMS FAQ:
Q:1. What is the balance function?
A: The working principle and function are as followings when your one cell voltage is up to alarm voltage(Li-ion up to 4.18V, Life Po4 up to (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will start a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage (Li-ion 4.25V, Life PO4 3.75V)BMS starts off power protection, all the other cells are all in the stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then the balance can not be functioning.
Q:2. What type of charger should I choose?
A: Lithium batteries must choose a specific charger, do not use Charger for a Lead-acid battery, for a lead-acid charger may have MOS with high-pressure breakdown protection, which will not protect against BMS overcharge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
Q:3. OEM&ODM are available?
A: Sure, OEM&ODM are welcome and the Logo can be customized too.
