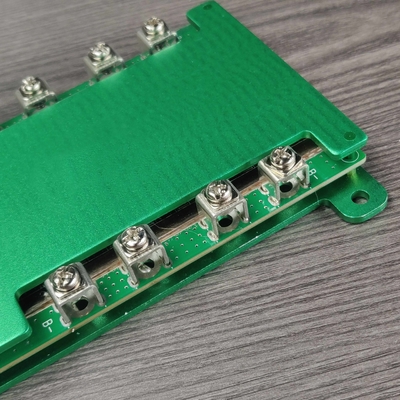

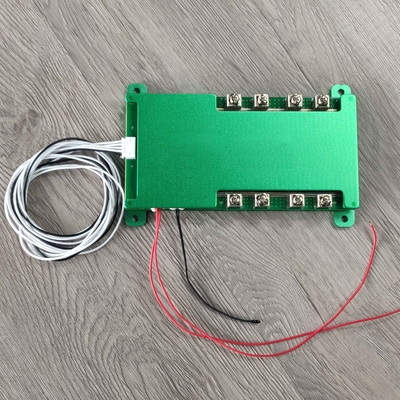

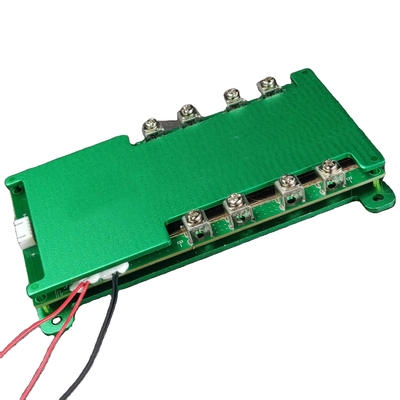

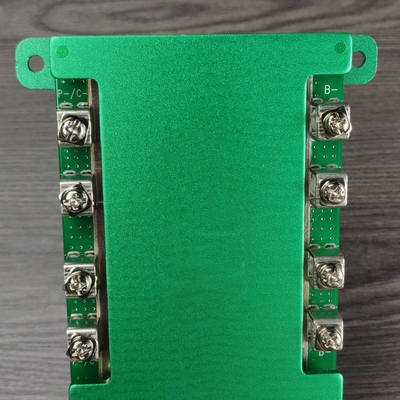

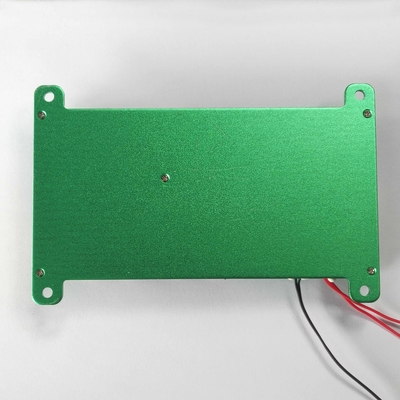

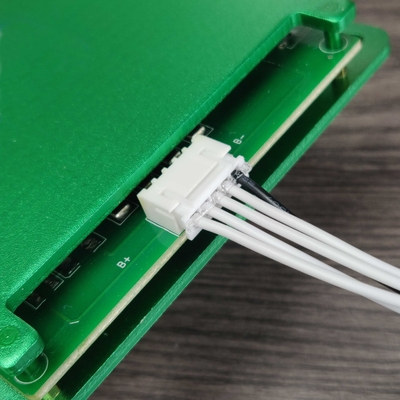

Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS

Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS
Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS

Large Image :  Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS

Product Details:
Place of Origin: China
Brand Name: Passional
Model Number: 4S12V250A
Payment & Shipping Terms:
Minimum Order Quantity: 2-99 Pieces
Price: Negotiable
Contact Now

Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS

Description
Keywords: LiFePO4 Battery BMS Base Material: FR-4
Copper Thickness: 1/2OZ,2OZ Min. Line Spacing: 0.065mm
Usage: Lithium Ion Battery Packs Communication: No
Size: 170MM*108MM*19MM Weight: About 454g
Application: Energy Storage,Electric Bike,EV Type: Li-Ion,LiFePo4,lifepo4 Battery Pack,lifepo4/lithium Battery/li-ion Battery
High Light:

0.065mm Lithium Battery BMS Board

,

2OZ Lithium Battery BMS Board

,

EV LiFePO4 Battery BMS

Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS

LiFePO4 Battery BMS Description:
The lithium iron phosphate battery is a lithium-ion battery using lithium iron phosphate (LiFePO4) as the positive electrode material and carbon as the negative electrode material.
LiFePO4 batteries have the advantages of high working voltage, high energy density, long cycle life, good safety performance, low self-discharge rate and no memory effect.



BMS FUNCTION:

★ Overcharge protection: prevent overcharge and affect battery life
★ Short circuit protection: automatic protection during abnormal short circuit to prevent damage to the protection board and
battery
★ Over-discharge protection: prevent the battery from being dead and affect the battery life
★ Over-current protection: prevent current from exceeding the battery's tolerance, causing battery damage
★ Drop-out protection: prevent the cable from being dropped or the contact is poor, and the battery loses protection
★ Over-temperature protection: prevent the battery temperature from becoming too high, causing spontaneous combustion or damag



Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS 0


Product Description


Content
Specification
Unit
Remark
Discharge
Continuous Discharge current
250
A

Pluse Discharge Current
750±80
A

Charge
Charge cut-off voltage
14.8
V

Max charge current
130(MAX)
A

Over Charge protection
Overcharge detection voltage
3.75±0.05
V

Overcharge detection delay time
1000±200
MS

Overcharge release voltage
3.55±0.05
V

Balance Portection
Balance Detection voltage
3.5
V

Balance release detection voltage
3.5
V

Balance current
40±0.05
mA

Overdischarge Portection
Overdischarge detection voltage
2.2±0.05
V

Overdischarge detection delay time
1000±200
MS

Overdischarge release voltage
2.7±0.05
V

Overcurrent Portection




Overcurrent protection current
750±80
A

Overcurrent detection delay time
600±300
MS
can set as per your request
Release condition
Cut short load


Short Protection
Detection condition
Out load short cycles


Detection delay time
500±150
uS

Release condition
Cut load


MOS Temp. protection
Over Charge protection temp.
85
℃
can set as per your request
Over Disharge protection temp.
85
℃

Battery high temperature protection
Charging protection temp.
55
℃

Discharging protection temp.
75
℃

Battery low temperature protection
Charging protection temp.
-20
℃

Discharging protection temp.
-40
℃

Interior resistance
Main loop electrify resistance
≤30
mΩ

Current consumption
Current consume in normal operation
≤100
uA


Sleep current(over discharge)
≤20
uA

Working Temp.
Temp.range
-20/+50
℃





Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS 1 Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS 2



Product Usage

Ebike Scooter EV Energy Storage Lithium Battery BMS Board 4S 12V 250A 3.2V LiFePO4 Battery BMS 3
Our Services:

1. We offer We provide customers with one-stop procurement services.
2. Here you can find all the main accessories related to lithium batteries.
3. Save time and energy for customers.

LiFePO4 Battery BMS FAQ:
Q:1. OEM&ODM are available?

A: Sure, OEM&ODM are welcome and the Logo can be customized too.

Q:2. The relationship between Battery capacity and BMS current?
A: There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but relies on
continue current, that is to say, if your engine is powerful, you should choose a high current of BMS, it does not rely on battery capacity.

Q:3. Whether my BMS damaged?
A: if you want to judge if the BMS is damaged, please take the following steps, to test if each cell voltage is the same as with the voltmeter. if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displayed as no charge, no discharge, no discharge while the battery has voltage.
