Product Details:
|
| Keywords: | Li Ion Battery BMS | Board Thickness: | 2mm |
|---|---|---|---|
| Surface Finishing: | HASL | Number Of Layers: | 1-2-4-6 Layers |
| Size: | 125*62*17MM | Weight: | 0.185kg |
| Single Package Size : | 13X8X9 Cm | Single Gross Weight: | 0.300 Kg |
| High Light: | NCM Li Ion Battery BMS,Li Ion Battery BMS 20S 72V 70A,20S 72V lithium battery management system |
||

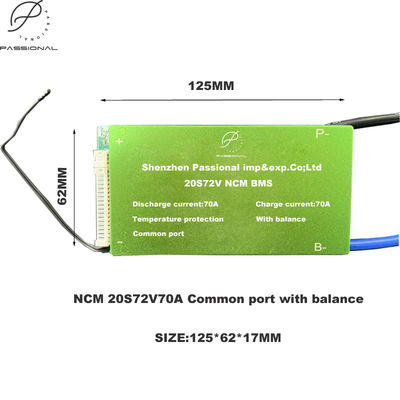

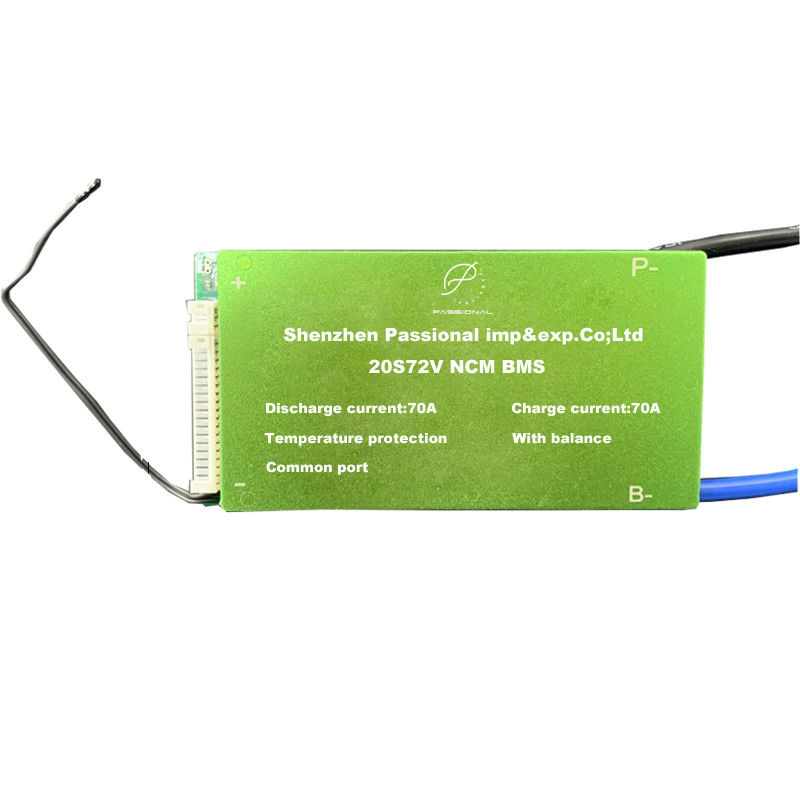

NCM Li-Ion Battery BMS 20S 72V 70A Lithium Battery Management System
Li-Ion Battery BMS Description:
What is a lithium-ion battery BMS?
The BMS battery management system is the link between the battery and the user. The important object is the secondary battery. The purpose is to improve the utilization rate of the battery, prevent the battery from overcharging and over-discharging, increase the service life of the battery and monitor the status of the battery. In layman's terms, it is an operating system that manages, controls, and uses lithium-ion battery packs. The BMS industry belongs to the midstream industry of the powerful lithium-ion battery industry chain. The BMS industry chain includes four links: mid- and upstream raw materials, BMS modules, BMS finished products, and downstream applications.
Li-Ion Battery BMS Parameter:
| Model Number | PLFP-207270 | Surface Finishing | HASL |
| Min. Line Spacing | 0.065mm | Product name | Battery Management Systems |
| Brand Name | Passional | Application | Battery Packs |
| Base Material | FR-4 | Usage | Lithium Battery Packs |
| Copper Thickness | 1/2OZ 1OZ 2OZ 3OZ | Number of Layers | 1-2-4-6 Layers |
| Board Thickness | 2mm | Communication | no |
| Min. Hole Size | 0.1mm | Size | 125*62*17MM |
| Min. Line Width | 0.065mm | Weight | 0.185kg |
FAQ:
Q:1. OEM&ODM are available?
A: Sure, OEM&ODM are welcome and the Logo can be customized too.
Q:2. What is your MOQ?
A: 1pc is OK. small orders are also welcome
Q:3. What current BMS should I choose?
A:Take 10S36V as an example: what current BMS you choose relies on your E-bicycle Motor power and the current limitation of the controller. eg., choose 16A for below 350W, 25A for below 500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one in all, continue current shall be higher than a current limitation in Controller.
Q:4. Why choose Passional?
1) A professional sales team that provides consultant service and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customers' requirements.
3) Quick response, every inquiry will be replied to within 24 hours.
4) Good after-sale service, long product warranty and continual technique support.
5) With 10 years of experience in manufacturing lithium batteries.
