Product Details:
|
| Keyword: | Smart BMS Battery | Weight: | 375g/pc |
|---|---|---|---|
| Customer Made Voltage: | 3V -72V | Size: | 180*100*18mm |
| Customer Made Communication: | Bluetooth/APP | Customer Made Current: | 10-200A |
| Brand: | PA | Origin: | CHINA |
| Highlight: | RS485 Smart BMS Battery,20S 72V Smart BMS Battery,BMS 72V 20S 100A 200A |
||

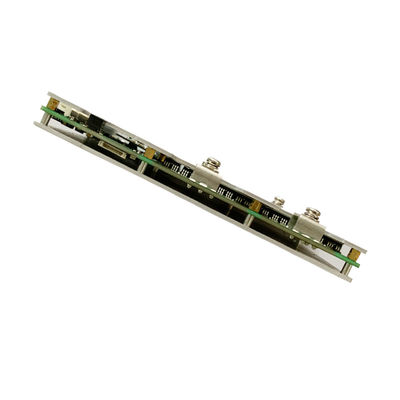

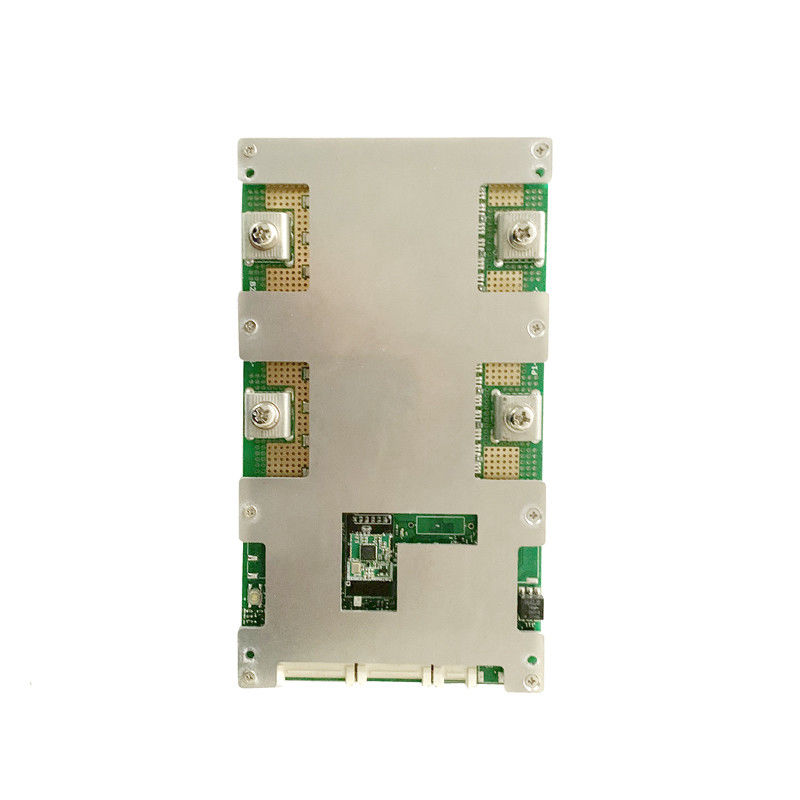

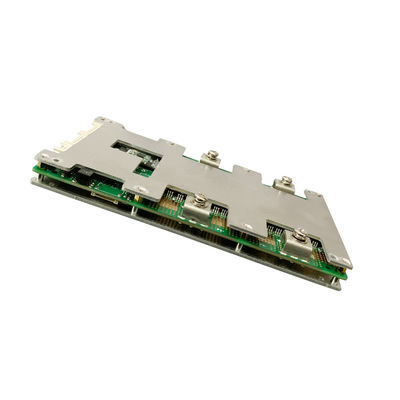

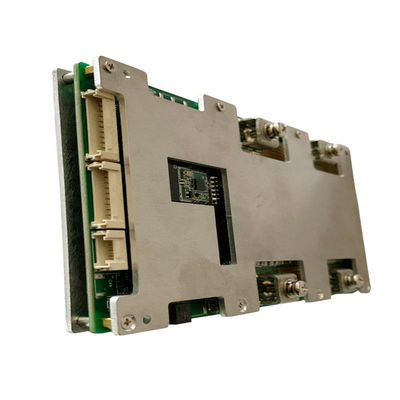

RS485 Smart BMS Battery 20S 72V 10A 50A 80A 100A 200A
Smart BMS Battery Description:
Battery protection board, as the name suggests, lithium battery protection board is mainly an integrated circuit board that protects rechargeable batteries (usually lithium batteries). The reason why lithium batteries (rechargeable) need protection is determined by their own characteristics. Because the material of the lithium battery itself determines that it cannot be overcharged, overdischarged, overcurrent, short-circuited, or ultra-high temperature charge and discharge. The three basic functions of the lithium battery protection board are short circuit protection, overcharge protection and overdischarge protection.
Smart BMS Battery Parameter:
|
|
Content
|
Specification
|
Unit
|
|
Discharge
|
Continuous Discharge current
|
80
|
A
|
|
Pluse Discharge Current
|
240±20
|
A
|
|
|
Charge
|
Charge cut-off voltage
|
54.6
|
V
|
|
Max charge current
|
30(MAX)
|
A
|
|
|
Over Charge protection
|
Overcharge detection voltage
|
4.25±0.05
|
V
|
|
Overcharge detection delay time
|
600±300
|
MS
|
|
|
Overcharge release voltage
|
4.15±0.05
|
V
|
|
|
Balance Portection
|
Balance Detection voltage
|
4.18
|
V
|
|
Balance release detection voltage
|
4.18
|
V
|
|
|
Balance current
|
35±5
|
mA
|
|
|
Overdischarge Portection
|
Overdischarge detection voltage
|
2.7±0.05
|
V
|
|
Overdischarge detection delay time
|
600±300
|
MS
|
|
|
Overdischarge release voltage
|
3.0±0.05
|
V
|
|
|
Overcurrent Portection
|
Overcurrent detection voltage
|
100
|
mV
|
|
Overcurrent protection current
|
135±20
|
A
|
|
|
Overcurrent detection delay time
|
600±300
|
MS
|
|
|
Release condition
|
Cut short load
|
|
|
|
Short Protection
|
Detection condition
|
Out load short cycles
|
|
|
Detection delay time
|
300±100
|
uS
|
|
|
Release condition
|
Cut load
|
|
|
|
Temp. protection
|
Over Charge protection temp.
|
-20~50
|
℃
|
|
Over Disharge protection temp.
|
-20~70
|
|
|
|
Interior resistance
|
Main loop electrify resistance
|
≤10
|
mΩ
|
|
Current consumption
|
Current consume in normal operation
|
≤100
|
uA
|
|
|
Sleep current(over discharge)
|
≤20
|
uA
|
|
Working Temp.
|
Temp.range
|
-20/80
|
℃
|
How to choose the right BMS board?
1. Determine your battery type (ternary/NCM, lithium iron/LFP, lithium titanate/LTO) and determine
The number of strings and parallels of the battery pack. Choose according to the number of concatenations.
2. Determine whether the battery pack is charged and discharged in the same port or in different ports. The charging and discharging of the same port is the same line, but a separate port is an independent charging and discharging line.
3. Determine the current value required by the protection board: I=P/U. That is, current = power/voltage. . Remember that this is only a theoretical value. In fact. We use this theoretical value as a reference. Taking into account the load, uphill and just starting environment, generally two-wheeled electric vehicles choose more than 2 times the theoretical value. Three-wheeled electric vehicles choose more than 3 times this theoretical value. Four-wheel low-speed vehicles generally have about 3.5 times. For inverters and energy storage products, 1.2 times is enough. Or refer to the current limit of the electric vehicle controller. ensure. The current value of the guard plate must be greater than the control current limit value.
