Product Details:
|
| Base Material: | FR-4 | Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ |
|---|---|---|---|
| Board Thickness: | 2mm | Min. Hole Size: | 0.1mm |
| Min. Line Width: | 0.065mm | Min. Line Spacing: | 0.065mm |
| Surface Finishing: | HASL | Product Name: | Battery Management Systems |
| Application: | Battery Packs | Usage: | Lithium Battery Packs |
| Number Of Layers: | 3 Layers | Communication: | No |
| Size: | 176*68*17MM | Weight: | 0.375kg |
| Selling Units: | Single Item | Single Package Size : | 20X9X9 Cm |
| Single Gross Weight: | 0.500 Kg | Package Type: | Bubble Pack And Carton |
| High Light: | Common Port BMS 8S 24V 100A,8S PCB Li Ion Battery BMS,Li Ion Battery BMS 8S 24V 100A |
||

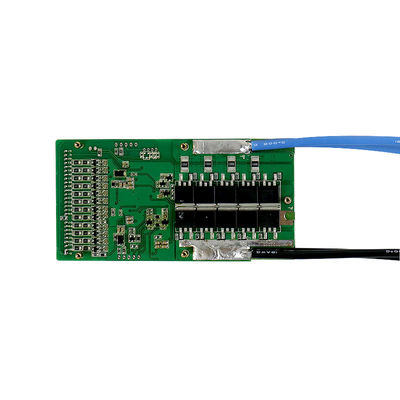

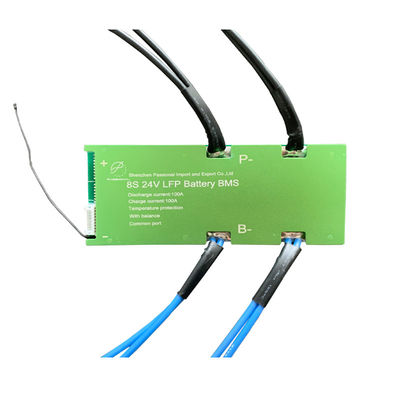

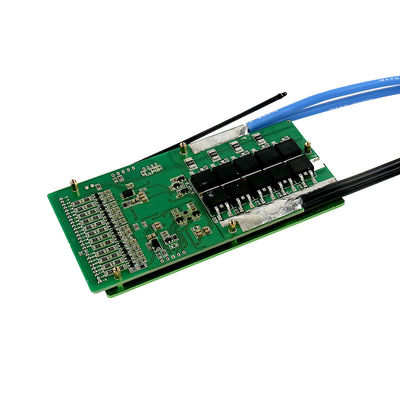

Common Port PCB Li Ion Battery BMS 8S 24V 100A Lithium Ion Battery Management
| Model Number | PLFP-82445 | Min. Line Spacing | 0.065mm |
| Weight | 0.375kg | Surface Finishing | HASL |
| Brand Name | Passional | Product name | Battery Management Systems |
| Base Material | FR-4 | Application | Battery Packs |
| Copper Thickness | 1/2OZ 1OZ 2OZ 3OZ | Usage | Lithium Battery Packs |
| Board Thickness | 2mm | Number of Layers | 3 Layers |
| Min. Hole Size | 0.1mm | Communication | no |
| Min. Line Width | 0.065mm | Size | 176*68*17MM |
FAQ:
Q:1. What current BMS should I choose?
A: Take 10S36V as an example: what current BMS you choose relies on your E-bicycle Motor power and the current limitation of the controller. eg., choose 16A for below 350W, 25A for below 500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one in all, continue current shall be higher than a current limitation in Controller.
Q:2. Whether my BMS damaged?
A: if you want to judge if the BMS is damaged, please take the following steps, to test if each cell voltage is the same as with the voltmeter. if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displayed as no charge, no discharge, no discharge while the battery has voltage.
Q:3. Why choose Passional?
1) A professional sales team that provides consultant service and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customers' requirements.
3) Quick response, every inquiry will be replied to within 24 hours.
4) Good after-sale service, long product warranty and continual technique support.
5) With 10 years of experience in manufacturing lithium batteries.
