Product Details:
|
| Keywords: | Li Ion Battery BMS | Product Name: | Battery Management Systems |
|---|---|---|---|
| Base Material: | FR-4 | Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ |
| Board Thickness: | 2mm | Min. Line Spacing: | 0.065mm |
| Surface Finishing: | HASL | Application: | Battery Packs |
| High Light: | 17S Li Ion Protection Board,BMS 17S 60V 45A,3.7V PCB Li Ion Protection Board |
||

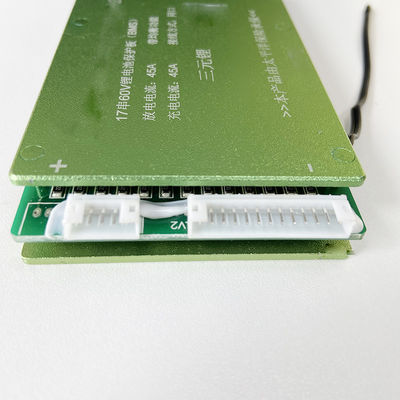

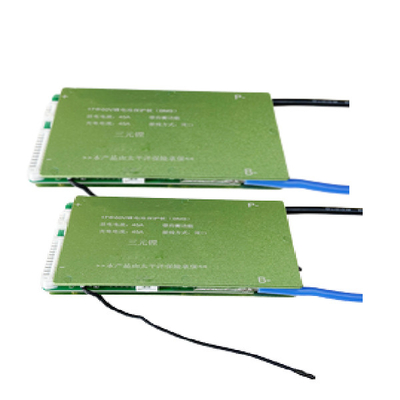

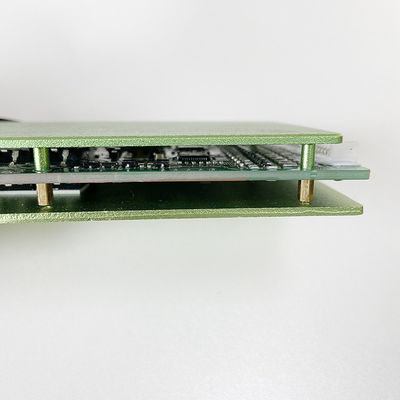

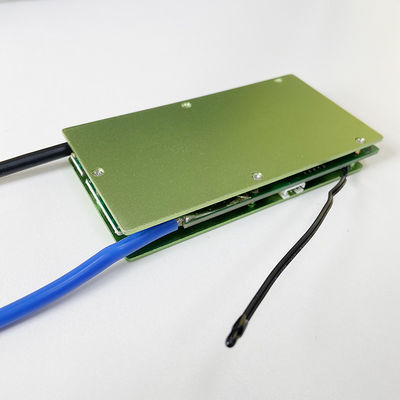

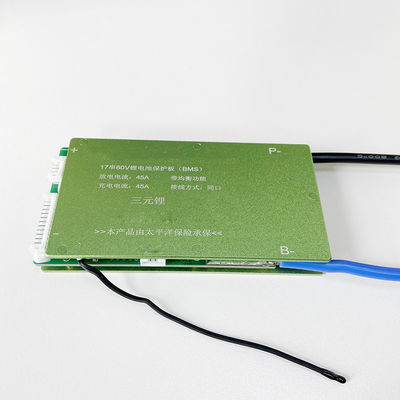

3.7V PCB Li Ion Protection Board BMS 17S 60V 45A Common Port With Balance
Li-Ion Battery BMS Description:
Why do we need BMS boards for batteries?
1. Battery protection board, as the name suggests, a lithium battery protection board is mainly an integrated circuit board that protects rechargeable batteries (usually lithium batteries).
2. The reason why lithium batteries (rechargeable) need protection is determined by their own characteristics. Because the material of the lithium battery itself determines that it cannot be overcharged, over-discharged, overcurrent, short-circuited, or ultra-high temperature charge and discharge.
3. The three basic functions of the lithium battery protection board are short circuit protection, overcharge protection and over-discharge protection.
Li-Ion Battery BMS Parameter:
| Model Number | PLNCM-176045 | Product name | Battery Management Systems |
| Place of Origin | Guangdong, China | Application | Battery Packs |
| Brand Name | Passional | Usage | Lithium Battery Packs |
| Base Material | FR-4 | Number of Layers | 3 Layers |
| Copper Thickness | 1/2OZ 1OZ 2OZ 3OZ | Communication | no |

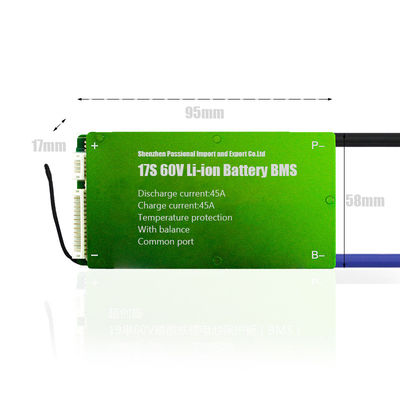

| Board Thickness | 2mm | Size | 95MM*58MM*17MM |
| Min. Hole Size | 0.1mm | Weight | 0.165kg |
| Min. Line Width | 0.065mm | Function | Balance Function |
| Min. Line Spacing | 0.065mm | Color | Green |
| Surface Finishing | HASL | Material | Aluminum |
Our Services & Strength:
1.We offer We provide customers with one-stop procurement services.
2. Here you can find all the main accessories related to lithium batteries.
3. Save time and energy for customers.
