Product Details:
|
| Features: | Safety | Keywords: | LiFePO4 Prismatic Cell |
|---|---|---|---|
| Application: | Electric Folklifts | Battery Size: | 140*20*100mm |
| Weight: | 0.65KG | Nominal Voltage: | 3.2 Volt |
| Nominal Capacity: | 30ah | Cycle Life: | 3000times |
| Size: | 140*20*100mm | Battery Type: | Lifepo4/lithium Battery |
| Product Name: | Lithium Iron Phosphate Lifepo4 Battery | Shell Material: | Aluminum |
| Selling Units: | Single Item | Single Package Size : | 15X3X11 Cm |
| Single Gross Weight: | 0.850 Kg | Origin: | Guangdong, China |
| Highlight: | 3.2V 30AH LiFePO4 Lithium Battery Pack,GUOXUAN LiFePO4 Lithium Battery Pack,Aluminum Li Iron Phosphate Battery |
||

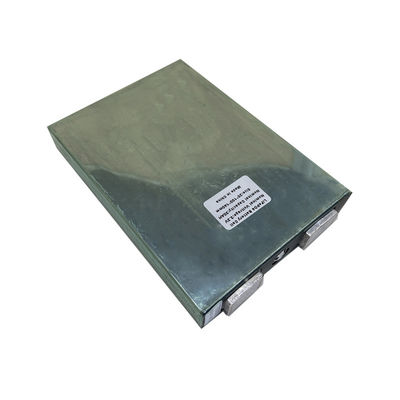

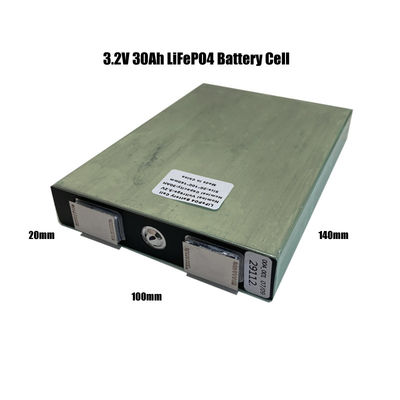

3.2V 30AH LiFePO4 Lithium Battery Pack Aluminum Li Iron Phosphate Battery
LiFePO4 Prismatic Cell Description:
1. The lithium iron phosphate square battery has overcharge and overdischarge protection.
2. The lithium iron phosphate square battery has a temperature control function.
3. The lithium iron phosphate square battery has short circuit protection.
4. The lithium iron phosphate square battery has the function of battery balancing to ensure long battery life.
5. The lithium iron phosphate square battery has LED power display function.
6. The lithium iron phosphate square battery has communication function.
LiFePO4 Prismatic Cell Parameter:
| NO. | Items | Parameter | Remarks | |
| 1 | Nominal Voltage | 3.2V | Standard Discharge | |
| 2 | Nominal Capacity | 30Ah | Standard Discharge | |
| 3 | Work Voltage | 2.5V-3.65V | Room Temperature | |
| 4 | Internal Resistance(Ac. 1kHz) | 0.20~0.50mΩ | Fresh Cell,50%SOC | |
| 5 | Discharge current | Constant discharge :80A | Maximum Pulse Discharging Current(Long Pulse):160A(3 minutes) | When battery temperature is below 50℃ |
| Maximum Pulse Discharging Current(Short Pulse):240A(30S) | ||||
| 6 | Charge rate | standard 0.3C | ||
| Max 1C | ||||
| 7 | Charging Time | ~4h | Standard Charge | |
| ~1h | Fast charge | |||
| 8 | Operating Temperature | Charging Temperature | -5~55°C | |
| Discharging Temperature | -30~55°C | |||
| 9 | Weight | 650±10g | ||
| 10 | Shell Material | Aluminium alloy | ||
| 11 | Recommended SOC Window | SOC:5%~97% | ||
| 10 | Cycle Life | ≥3000 cycles | ||
LiFePO4 Prismatic Cell Factory Introduction:
Shenzhen Paisheng Import & Export Co., Ltd. specializes in the production of various 3.7V and 3.2V lithium-ion batteries, chargers, battery BMS and battery packs, etc. The products are widely used in digital products, laptop computers, electrical and electronic products, lighting equipment, toys, household appliances and emergency equipment. We have more than 10 years of battery manufacturing experience, we can assemble batteries and batteries according to your design and requirements.
