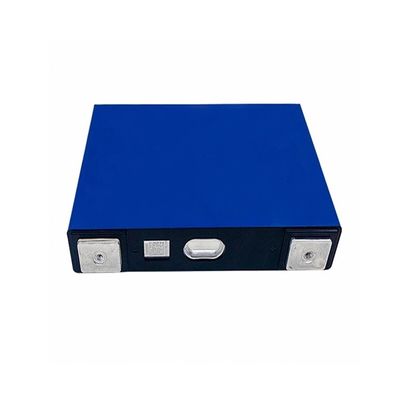

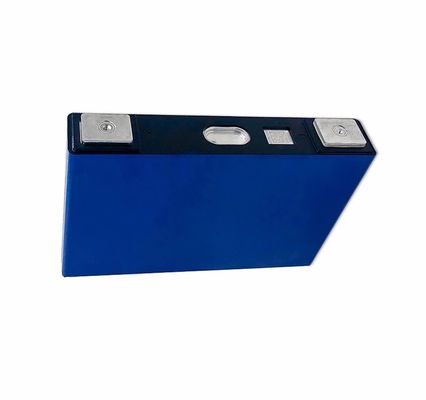

Li Ion Battery Cell 175WH NMC Rechargeable Prismatic Cells 3.7V 50AH CALB Lithium Battery

Li Ion Battery Cell 175WH NMC Rechargeable Prismatic Cells 3.7V 50AH CALB Lithium Battery
Li Ion Battery Cell 175WH NMC Rechargeable Prismatic Cells 3.7V 50AH CALB Lithium Battery Li Ion Battery Cell 175WH NMC Rechargeable Prismatic Cells 3.7V 50AH CALB Lithium Battery

Large Image :  Li Ion Battery Cell 175WH NMC Rechargeable Prismatic Cells 3.7V 50AH CALB Lithium Battery

Product Details:
Place of Origin: China
Brand Name: CALB
Certification: MEDS
Model Number: 20211215
Payment & Shipping Terms:
Minimum Order Quantity: 8
Price: Negotiable
Packaging Details: 148*27*98mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/15days

Li Ion Battery Cell 175WH NMC Rechargeable Prismatic Cells 3.7V 50AH CALB Lithium Battery

Description
Application:: Electric Folklifts, OTHER, Golf Carts, Electric Power Systems Keywords: Li Ion Battery Cell
Weight: 0.85kg SIZE: 140*20*100mm
Nominal Voltage: 3.7V Battery Type: NCM
Brand: CALB Origin: CHINA
Highlight:

175WH NMC Prismatic Cells

,

175WH NMC Prismatic Cells 3.7V

,

175WH NMC Prismatic Cell



Li-Ion Battery Cell 175WH NMC Rechargeable Prismatic Cells 3.7V 50AH CALB Lithium Battery



Li-Ion Battery Cell Reminder:

1. DIY battery pack must get the cells balanced (same voltage ) before assembly. Later there happens don't know how to assemble or an unbalanced assembly is not accepted refund. please consider before taking orders, placing an order means you have agreed. thankyou for your cooperation!

2. Do not submerge the battery in the water.
3. Do not insert batteries with the (+) and (-) reversed.
4. Do not disassemble, or dispose of in fire, heat, or short circuit.
5. Do not expose batteries to sunlight for a long time.
6. Do not mix fresh batteries with used batteries.
7. Do not keep batteries close to the baby.



Li-Ion Battery Cell Parameter:

Application::

Electric Forklifts, OTHER, Golf Carts, Electric Power Systems

Keywords:

Li-Ion Battery Cell

Weight:

0.85kg

SIZE:

140*20*100mm

Nominal Voltage:

3.7V

Battery Type:

NCM

Brand:

CALEB

Origin:

CHINA



NO.
Items
Parameter
Remarks
1
Nominal Voltage
3.7V
Standard Discharge
2
Nominal Capacity
50Ah
Standard Discharge
3
Work Voltage
2.75-4.25V
T≥0℃
2.5-4.25V
-20℃≤T<0℃
2.0-4.25V
-30℃≤T<-20℃
4
Internal Resistance(Ac. 1kHz)
0.60~0.80mΩ
Fresh Cell,50%SOC
5
Discharge current
Standard Constant discharge:1C
Max constant discharge 3C/150A (3 minutes)
When the battery temperature is below 50℃, the maximum discharge can last 10s
6
Charge rate
standard 0.3C
Max 1C
7
Charging Time
~4h
Standard Charge
8
Operating Temperature
Charging Temperature
-5~55°C

Discharging Temperature
-30~55°C

9
Weight

900±25g

10
Shell Material

Aluminum alloy

11
Recommended SOC Window
SOC:5%~97%
12
Connection of cells
by Welding





Li-Ion Battery Cell Factory Introduction:

Shenzhen Paisheng Import & Export Co., Ltd. specializes in the production of various 3.7V and 3.2V lithium-ion batteries, chargers, battery BMS and battery packs, etc. The products are widely used in digital products, laptop computers, electrical and electronic products, lighting equipment, toys, household appliances and emergency equipment. We have more than 10 years of battery manufacturing experience, we can assemble batteries and batteries according to your design and requirements.
