Product Details:
|
| Keywords: | LiFePO4 Prismatic Cell | Application: | Electric Folklifts, OTHER, Golf Carts, Electric Power Systems, Power Tools, Electric Bicycles/Scooters, Toys, Solar Energy Storage Systems, Electric Wheelchairs, BOATS, Electric Vehicles, Home Appliances, SUBMARINES, Electric Bicycles |
|---|---|---|---|
| Battery Size: | 135*29*199mm | Weight: | 1.65KG |
| Nominal Voltage: | 3.2 Volt | Nominal Capacity: | 68ah |
| Cycle Life: | 3000times | Size: | 135*29*199mm |
| Selling Units: | Single Item | Single Package Size : | 3.67X15X25 Cm |
| Single Gross Weight: | 1.800 Kg | Origin: | Guangdong, China |
| High Light: | 3000 Times CALB LiFePO4 Battery,CALB LiFePO4 Battery 3.2V,3.2V 68AH Prismatic Pouch Cell |
||

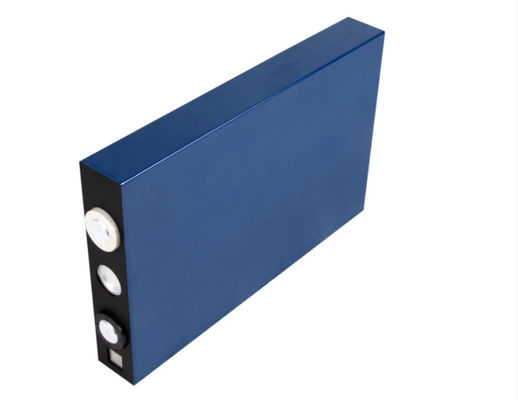

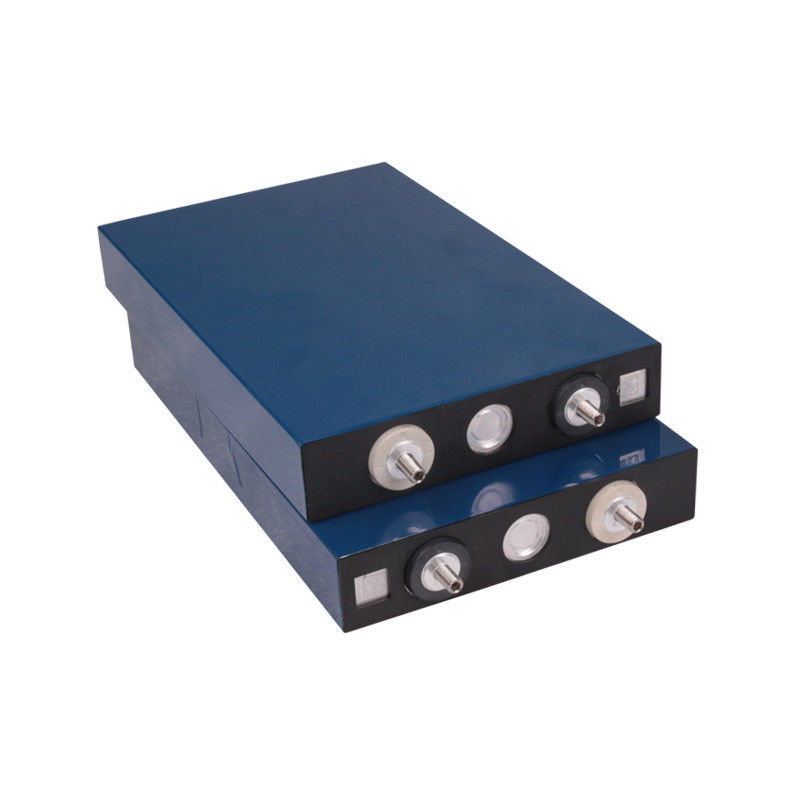

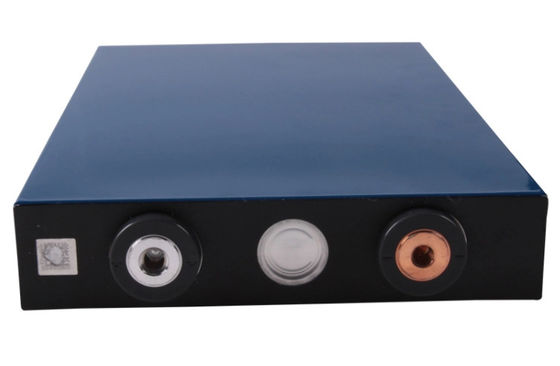

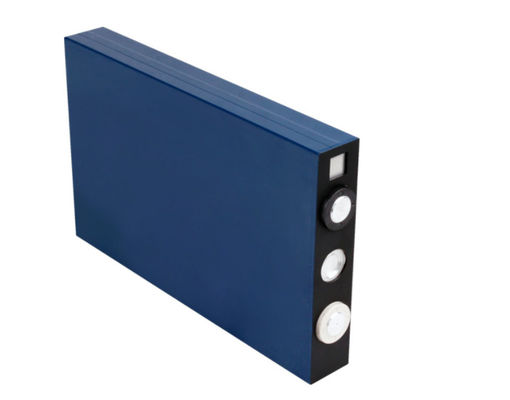

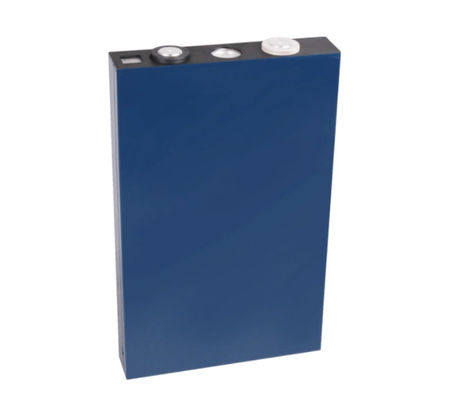

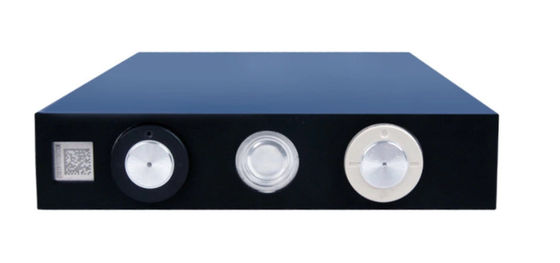

3000 Times CALB LiFePO4 Battery 3.2V 68AH Prismatic Pouch Cell
LiFePO4 Prismatic Cell Description:
1. The LiFePO4 prismatic battery has short circuit protection.
2. The LiFePO4 prismatic battery has the function of balancing the battery and ensuring long battery life.
3. LiFePO4 square battery has an LED power display function.
LiFePO4 Prismatic Cell Parameter:
| Keywords: | LiFePO4 Prismatic Cell | Application: | Electric Forklifts, OTHER, Golf Carts, Electric Power Systems, Power Tools, Electric Bicycles/Scooters, Toys, Solar Energy Storage Systems, Electric Wheelchairs, BOATS, Electric Vehicles, Home Appliances, SUBMARINES, Electric Bicycles |
|---|---|---|---|
| Battery Size: | 135*29*199mm | Weight: | 1.65KG |
| Nominal Voltage: | 3.2 Volt | Nominal Capacity: | 68ah |
| Cycle Life: | 3000times | Size: | 135*29*199mm |
| Selling Units: | Single Item | Single Package Size : | 3.67X15X25 Cm |
| Single Gross Weight: | 1.800 Kg | Origin: | Guangdong, China |
|
Nominal Voltage
|
3.2V |
| Nominal Capacity |
68Ah
|
| Standard Charge Current | 13.6A (0.2C rate) |
| Max. Charge Current |
68A (1C rate)
|
|
Charge Cut-off Voltage
|
3.65V
|
| Standard Constant Discharge current |
68A/1C
|
| Max Constant Discharge current | 136A/2C |
|
Discharge Cut-off Voltage
|
2.5V
|
|
Inner Resistance
|
≤ 1mΩ (At 0.2C rate, 2.5V cut-off)
|
|
Weight
|
1.65Kg
|
|
Dimensions
|
Length: 199mm
Width: 135.2mm
Thickness: 29.5mm
|
| Operating Temperature |
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C
(The cell surface temperature cannot exceed 70°C)
|
| Storage Temperature/Humidity |
Temperature: -10°C ~ +35°C
Humidity:65%±20%RH
(optimal store temperature of 23 ± 5°C for long term storage)
|
| Cycle Life | ≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |
LiFePO4 Prismatic Cell Factory Introduction:
Shenzhen Paisheng Import & Export Co., Ltd. specializes in the production of various 3.7V and 3.2V lithium-ion batteries, chargers, battery BMS and battery packs, etc. The products are widely used in digital products, laptop computers, electrical and electronic products, lighting equipment, toys, household appliances and emergency equipment. We have more than 10 years of battery manufacturing experience, we can assemble batteries and batteries according to your design and requirements.
